Simple Storage Service (S3)¶

Overview¶

• S3 buckets are bound to a region.
• Buckets must have a globally unique name.
• Public access is blocked by default.
• Bucket names must be DNS compliant -
  • No uppercase
  • No underscore
  • 3-63 chars
  • Not an IP
  • Must start with a lowercase letter or number

S3 Objects¶

• Max object size is 5TB.
• Use multi-part upload for anything over 5GB.
• Add extra metadata using key/value pairs.
• Can be tagged.
• Have a version id if versioning is enabled.
• Objects within the bucket can have different ACLs, encryption methods, storage classes etc.
• Use Pre-signed URLs to access an object without using the public URL.

Versioning¶

• Enabled at the bucket level.
• New version generated each time an object with the same key is over-written.
• Files not versioned prior to enabling versioning will have anull version id.
• Suspending versioning doesn't delete the previous versions.
• Delete marker is created when a file is deleted. Old versions of the file will remain accessible.
• Restore a file by deleting the delete marker.

Encryption¶

There's four ways to encrypt objects, and a bucket can have a default encryption method.

SSE-S3¶

• Encryption keys managed by AWS S3.
• Uses AES-256.
• Must add the header "x-amz-server-side-encryption": "AES256".

SSE-KMS¶

• Encryption keys are managed in AWS KMS.
• Can control who has access to the encryption keys.
• Usage is logged in CloudTrail.
• Customer Master Key (CMK) is used to encrypt S3 objects.
• Requires the "x-amz-server-side-encryption": "aws:kms" header.
• Needs a KMS key policy that authorizes the user/role.

SSE-C¶

• Uses a data key provided by the user.
• Key isn't stored by S3.
• Must use HTTPS.
• Encryption key needs to be in the HTTP header.

Client Side Encryption¶

• Customer fully controls the encryption/decryption cycle.
• Clients must encrypt/decrypt the object themselves.
• S3 Encryption Client library can help do this.

Encryption in Transit (TLS/SS)¶

• S3 endpoints can be utilized using HTTP, or HTTPS.

• Force SSL by creating a DENY rule on the condition "aws:SecureTransport": "false". Setting aws:SecureTransport to true would allow anonymous GetObject if using SSL.

  {
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "AllowSSLRequestsOnly",
        "Action": "s3:*",
        "Effect": "Deny",
        "Resource": [
          "arn:aws:s3:::awsexamplebucket",
          "arn:aws:s3:::awsexamplebucket/*"
        ],
        "Condition": {
          "Bool": {
            "aws:SecureTransport": "false"
          }
        },
        "Principal": "*"
      }
    ]
  }


  - On SSE-KMS, need to limit the encryption headers to SSE-KMS only, and deny on no header.

  {
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "DenyIncorrectEncryptionHeader",
        "Effect": "Deny",
        "Principal": "*",
        "Action": "s3:PutObject",
        "Resource": "arn:aws:s3:::bucket_name/*",
        "Condition": {
          "StringNotEquals": {
            "s3:x-amz-server-side-encryption": "aws:kms"
          }
        }
      },
      {
        "Sid": "DenyUnencryptedObjectUploads",
        "Effect": "Deny",
        "Action": "s3:PutObject",
        "Resource": "arn:aws:s3::bucket_name/*",
        "Condition": {
          "Null": {
            "s3:x-amz-server-side-encryption": true
          }
        }
      }
    ]
  }


Default Encryption¶

• Bucket policies are evaluated before default encryption.
• Can use AES-256 via SSE-S3, or SSE-KMS.

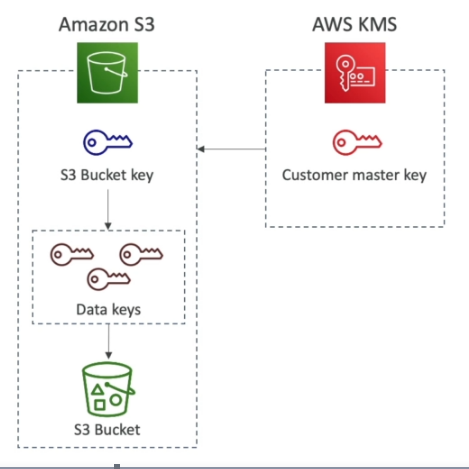

S3 Bucket Key¶

• Reduces API calls to KMS (reduces costs).

• Encryption Workflow -



  1. AWS KMS generates a S3 bucket key using the CMK.
  2. S3 generates a Data Encryption Key (DEK) using the S3 Bucket Key.
  3. S3 Objects are encrypted using the Data Encryption Keys (DEKs).

S3 Security¶

User Based Security¶

• Controlling the API calls that are allowed for a given user using IAM policies.
• The IAM Principal (user) can access an S3 Object if:
  • The users IAM permissions allow it, or the resource policy allows it.
  • There's no explicit DENY on the bucket policy.

Resource Based Security¶

• Object ACL can apply ACLs at the object level.
• Bucket ACL applies to the whole bucket. Not commonly used.

Bucket Policy¶

• Applies to the whole bucket.
• Rules are defined in the S3 console, which allows cross-account access.
• Can be applied to bucket and objects.
• Blocking public access to buckets and objects can be done through:
  • Access Control Lists (ACLs).
  • A new public bucket, or access point policies.
• Blocking public and cross-account access to buckets and objects can be done through:
  • Any public bucket or access point policy.
• Blocking public access to buckets can be set at the account level.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "PublicRead",
      "Effect": "Allow",
      "Principal": "*",
      "Action": [
        "s3:GetObject"
      ],
      "Resource": [
        "arn:aws:s3:::mybucket/*"
      ]
    }
  ]
}

Networking¶

• A VPC endpoint can be used to access a private bucket from other resources in the same VPC.

Logging & Auditing¶

• S3 access logs can be stored in another S3 bucket.
• API usage is logged to CloudTrail.

S3 Access Logs¶

• Logs all S3 Bucket access to another bucket.
• Use data analysis tools/Athena to analyse the access logs.
• Don't send logs to the same bucket that's being monitored.
• Can define a prefix to use on all of the generated logfiles.

User Security¶

MFA-Delete¶

• Requires MFA to delete an object version (adding a marker), or suspend versioning on the bucket.
• Versioning must be enabled on the bucket.
• Can only be enabled/disabled by the bucket owner.
• Can only be configured via the CLI.

Pre-signed URLs¶

• Can be created via CLI or the SDK.
• Default expiration is 3600secs. Change using the --expires-in argument.
• Users given the pre-signed URL inherit the permissions of the person that generated the URL.
• The S3 signature version needs to be s3v4.

Generating a Pre-signed URL¶

$ aws configure set default.s3.signature_version s3v4
$ aws s3 presign <S3Uri> --expires-in <seconds> --region <bucket region>

Use Cases¶

• Allow only logged in users to download a resource.
• Dynamically generating URLs due to high user churn.
• Temporarily allow a user to upload a file to a specific location in the bucket.

S3 Static Websites¶

• Accessible via <bucket name>.s3-website-<region>.amazonaws.com
• Bucket needs to be public, with a S3 policy that allows public reads, otherwise you'll get a 403 error.
• Bucket objects need to be un-encrypted.
• Can set a custom index and error page.
• Can define redirection rules.

CORS¶

• Allows the website to make requests to other origins than have been white-listed.
• Uses the Access-Control-Allow-Origin header to control permitted origins.

S3 CORS¶

• Allow a specific origin via an explicit name, or use "*" to allow all origins.
• CORS headers must be enabled on cross-origin buckets, to allow a client to do a cross-origin request.

Consistency Model¶

• PUT on new objects has Read after write consistency.
• PUT/DELETE on existing objects is eventually consistent.
• There's no way to request strong consistency.

S3 Replication¶

• Asynchronous.
• Must enable versioning in the source and destination buckets.
• Requires an IAM role with permissions to copy between buckets.
• Only new objects created after replication is enabled will be copied across.
• Deletes are not replicated.
  • Deleting without a version id will create a delete marker.
  • Deleting with a version id will delete in the source only.
• No replication chaining.
  • Where bucket1 is replicating into bucket2, and bucket2 is replicating into bucket3, objects created in bucket1 won't be replicated to bucket3.
• Can replicate the whole bucket, or only specific prefixes/tags.
• Can replicate objects encrypted with AWS KMS.

Cross-Region Replication (CRR)¶

• S3 replication between buckets in different regions.
• Used for compliance, low latency access, replication across accounts.

Same Region Replication (SRR)¶

• S3 replication between buckets in the same region.
• Used for log aggregation, live replication between prod and test accounts.

S3 Storage Classes¶

S3 Standard - General Purpose¶

• 11 9's durability.
• 4 9's availability.
• Can handle upto 2 concurrent facility failures.
• General purpose.
• Minimum storage duration is 30 days.
• No retrieval fee.

Use Cases¶

• Big data analytics.
• Mobile & gaming applications.
• Content distribution.

S3 Standard - Infrequent Access (IA)¶

• Data that isn't accessed very often, but needs to be retrieved quickly when needed.
• 11 9's durability.
• 3 9's availability.
• Cheaper than S3 Standard.
• Minimum storage duration is 30 days.
• Retrieval fee per GB retrieved.

Use Cases¶

• DR.
• Backups.

S3 One Zone - Infrequent Access¶

• Same as IA, but data stored in a single AZ.
• 11 9's durability of objects in a single AZ.
• 99.5% availability.
• Low latency, high throughput.
• Supports SSL for encryption at in transit/at rest.
• 20% cheaper than IA.
• Minimum storage duration is 30 days.
• Retrieval fee per GB retrieved.

Use Cases¶

• Secondary backup copies of on-prem data.
• Storing data that could be re-created if needed.

S3 Intelligent Tiering¶

• Low latency, high throughput.
• Additional cost to monitor objects and automatically move them between two different access tiers.
• 11 9's durability.
• 3 9's availability.
• Resilient to loss of entire AZ.
• Minimum storage duration is 30 days.
• No retrieval fee.

Glacier¶

• Low cost.
• Intended for archiving/backups.
• Retaining data for a long time (multiple years).
• Alternative to magnetic tape storage.
• 11 9's durability.
• Each object is called an Archive and can be upto 40TB.
• Archives are stored in Vaults, not buckets.
• Minimum storage duration is 90 days.
• Retrieval fee per GB retrieved.

Retrieval Options¶

• Expidited (1-5mins).
• Standard (3-5hrs).
• Bulk (5-12hrs).

Glacier Deep Archive¶

• Cheapest option.
• Minimum storage duration is 180 days.

Retrieval Options¶

• Standard (12hrs).
• Bulk (48hrs).

Lifecycle Configuration (Policies)¶

• Lifecycle rules define when to move an object to another storage class.
• Expiration actions define when an object/previous versions will be deleted, or when to clean up incomplete multi-part uploads.
• Rules can be applied against a specific prefix, or object tags.

Lifecycle Rule Actions¶

• Transition current versions between storage classes.
• Transition previous versions between storage classes.
• Expire current versions.
• Permanently delete previous versions.
• Delete expired delete markers or incomplete multi-part uploads.

Performance¶

• Latency of 100-200ms.
• 3,500 PUT/COPY/POST/DELETE requests per second, per bucket prefix.
• 5,500 GET/HEAD requests per second, per bucket prefix.
• Using SSE-KMS will impose KMS limits (fixed number of API requests per second).

Optimising¶

• Use multi-part uploads for files over 100MB. Mandatory for 5GB+.
• Use S3 Transfer Acceleration for uploads. Transfers the file to an edge location, and forwards it from there to the S3 bucket using the private AWS network.
• Use S3 Byte-Range fetches to download files (simlar to multi-part uploads).
• Only retrieve part of the object (ie: the head of a file).

S3 Select/Glacier Select¶

• Retrieve less data using SQL via server side filtering.
• Filter by rows and columns.
• Reduces network transfer, client-side CPU usage.
• Useful for structured data (csv files etc).

Event Notifications¶

• S3:ObjectCreated, S3:ObjectRemoved, S3:ObjectRestore, S3:Replication
• Can filter by object name.
• Good use case, is generating thumbnails when an image is uploaded to S3.
• Delivered within seconds.
• Bucket versioning is required to ensure an event is sent for every successful write.
• Can send the event to SQS, SNS or Lambda function.

S3 Object Lock¶

• Write Once, Read Many.
• Block object version deletion for a specified amount of time.

Glacier Vault Lock¶

• Write Once, Read Many.
• Lock the policy for future edits.
• Useful for compliance & data retention.
